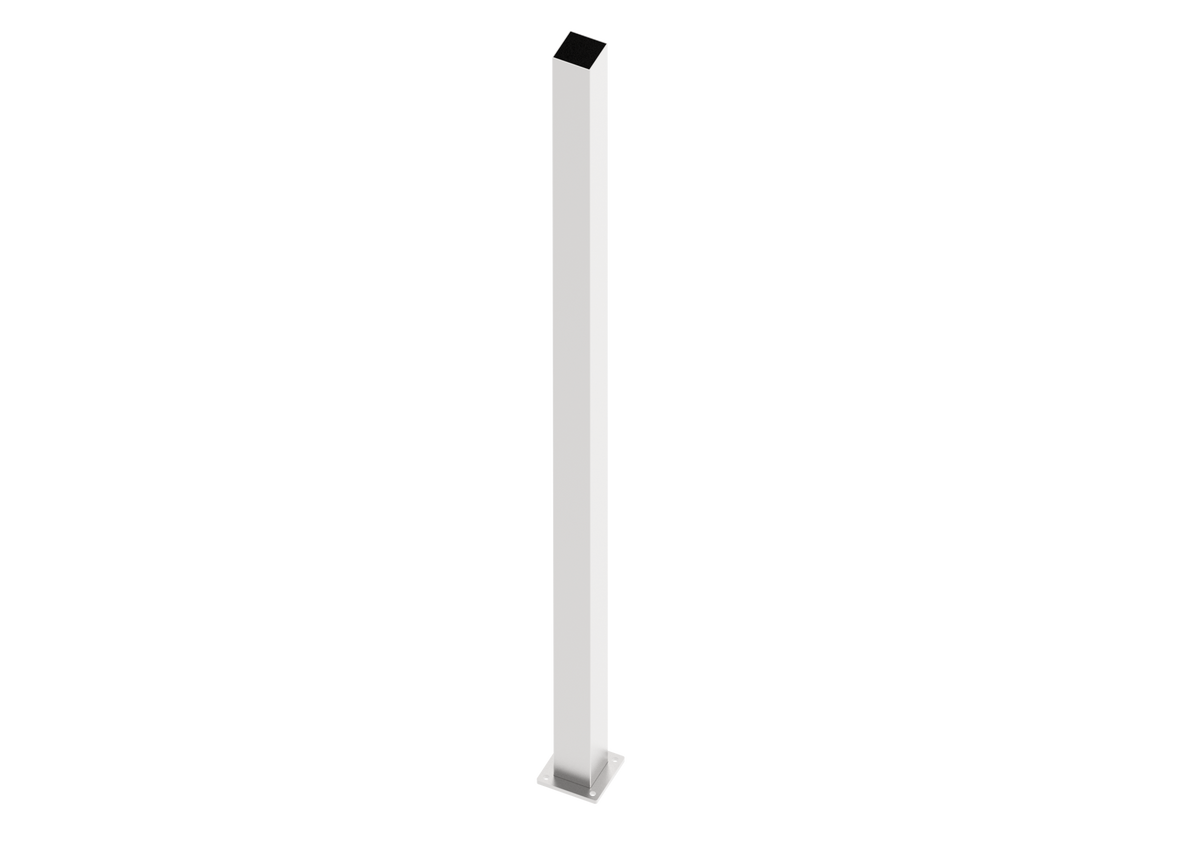

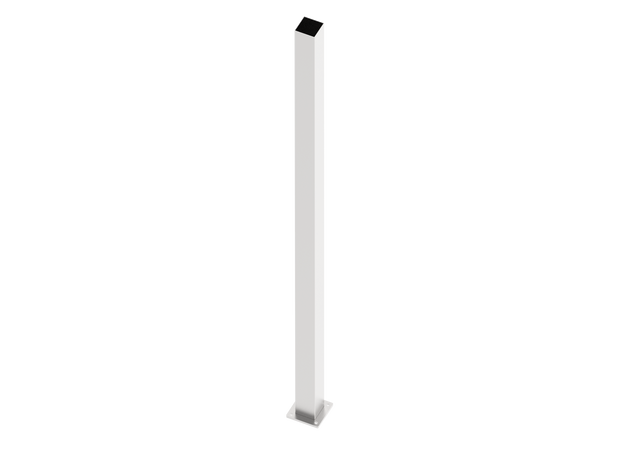

Stainless steel post 80x80-2000, with mounting flange, Natural

Stainless steel post 80x80-2000 with mounting flange, for hanging swing gates - Natural
Product code: A/FP80x2-2000-N

Stainless steel post primarily designed for hanging swing gates, with a welded mounting flange with 4 holes of 12.5 mm diameter for anchoring the post into the foundation footing, without a cover rosette.

Material
• Stainless steel AISI 304.
• High resistance to corrosion and weather conditions.

Surface finish
• Natural – brushed stainless steel appearance.
• Without powder coating, with a natural stainless steel appearance.

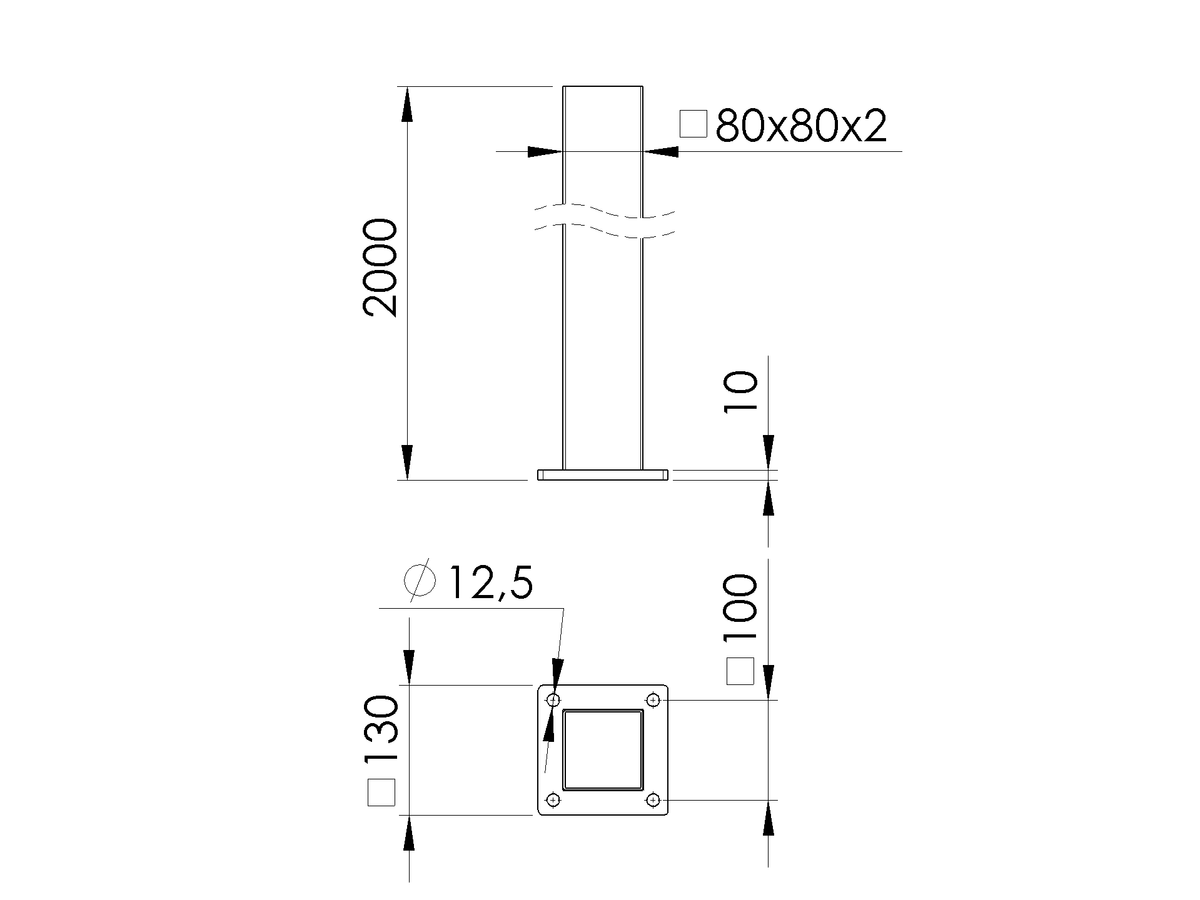

Dimensions
• Cross-section: 80×80 mm.
• Length: 2000 mm (2.0 m).
• Wall thickness: 2 mm.
• Possibility of shortening or ordering other lengths.

Installation and compatibility
• Primarily designed for hanging swing gates (product code FG/S-SSG-R7016-SET), (product code FG/S-SSG-1x1,5-R7016-SET), (product code FG/L-SSG-R7016-SET).
• Anchoring into the foundation footing using 4 pcs threaded rods (product code A-DIN 975 M10...), 4 pcs washers A-DIN 125-A2-M10 and 4 pcs cap nuts (product code A-DIN 1587-A2 M10) with the use of chemical anchor (e.g., product code Q5/1GF-300) or other through-bolt or stud anchors depending on the foundation footing material.
• Possibility of anchoring adapters:
– MODEL 46 (product code FG/AL46...) and cover strips (product code FG/A2F20x14...) for rhomboid infill (product code FG/L1S20x120...), double-chamber (product code FG/L2S20x120...) and oval – external (product code FG/O20x100...).
– MODEL 40 (product code FG/AL40...) and cover strips (product code FG/A2F20x14...) for infills with a width of 40 mm.
– MODEL 20 (product code FG/AS20...) and cover strip (product code FG/A2F20x14...) for infills with a width of 20 mm.
• Possibility of anchoring clamps (product code YAF01ZN04-01...) or clips (product code YAF01ZN04-01-02/7016-G) for attaching welded fence panels (product code YAA01ZN0830x4,0/7016-Z).

Advantages
• Post with welded mounting flange, primarily designed for hanging swing gates.
• Natural appearance of stainless steel material without the need for additional coating.
• High resistance to corrosion and weather conditions.
• Easy replacement of damaged parts.
• Quick assembly with a bolted system – saving time and costs.
• Minimal maintenance – regular cleaning is sufficient.
