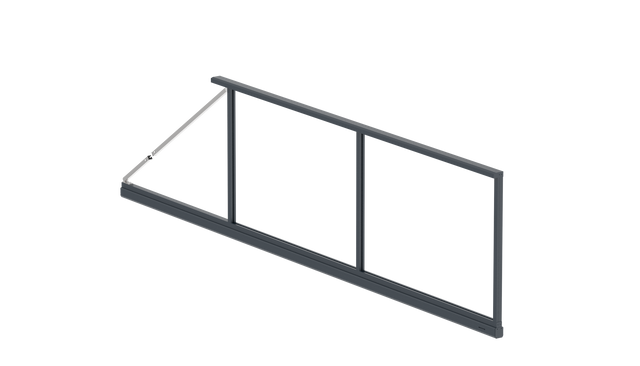

Aluminum Frame for Cantilever Sliding Gate 6 x 2.125 m, Anthracite R7016, with Tensioner - SET
Contact
Contact
For more information, please contact our sales:
Description

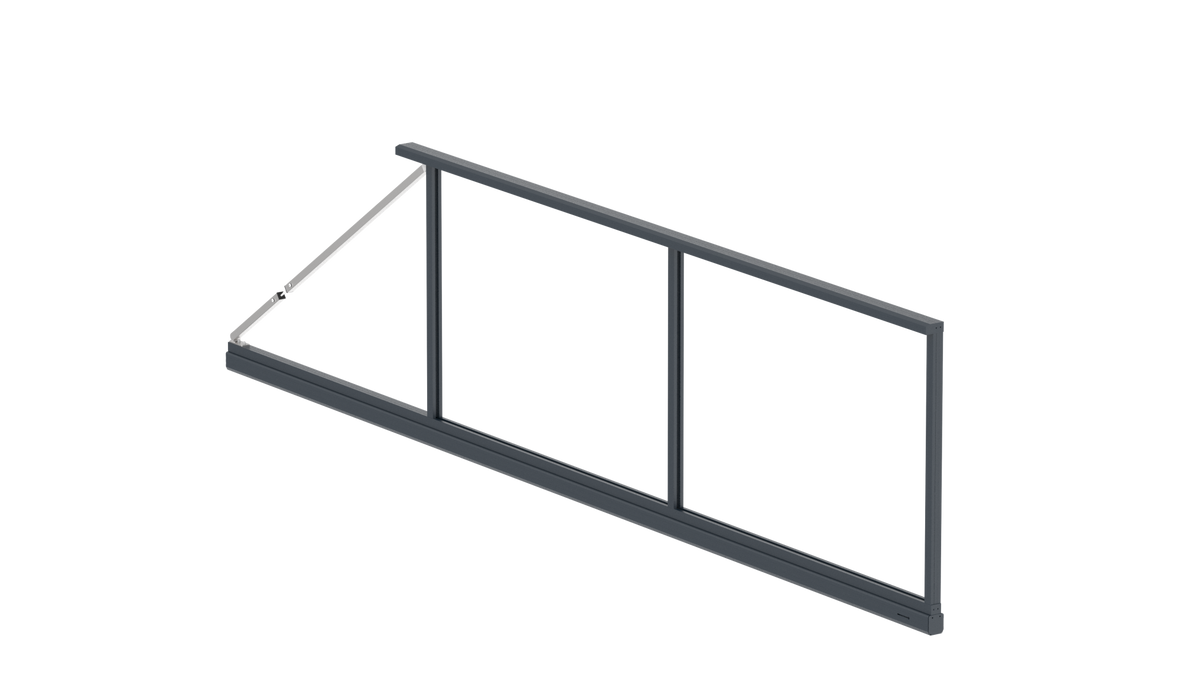

Aluminum Frame for Cantilever Sliding Gate 6x2.125 m, clear opening 4.1 m, Anthracite R7016, with tensioner, without drive - SET
Product code: FG/FR-CLG-R7016-SET-PRO
The modern aluminum frame for cantilever sliding gates represents a premium solution for property access without the need for a bottom track. Thanks to its cantilever design, the gate moves above the ground, eliminating problems with dirt, freezing, or track wear. It is an ideal solution for intensive use and demanding climatic conditions.
The frame is made of high-quality extruded aluminum EN AW-6063 T6, which ensures high strength at low weight and exceptional corrosion resistance compared to steel systems. The structure is designed for long-term, maintenance-free operation without the need for painting or additional protection.
The main advantage is a universal frame ready for installing your own infill according to the desired appearance, level of privacy, or architectural style. The powder coating in Anthracite RAL 7016 (matt) ensures long-term color stability without fading or peeling.
The system is designed a cantilever gate with an aluminum C-profile. The frame is ready for installing an individually chosen infill according to customer requirements.
Why choose this gate frame?
If you are looking for a modern, reliable, and maintenance-free cantilever sliding gate solution with the option of your own infill, this system represents a long-term advantageous investment. It offers high durability, precise manufacturing, a complete mounting set, and maximum flexibility in creating the entrance design according to individual requirements.
Key competitive advantage
Unlike classic track systems, this frame is designed for a cantilever gate, which provides:
trouble-free operation even in winter without snow and dirt in the path
minimal maintenance without cleaning tracks
quiet and smooth movement
higher reliability in daily use
At the same time, the structure is fully bolted without welding, which allows for:
high manufacturing precision
easy assembly and on-site adjustments
possibility of disassembly without damaging the structure
Technical parameters
max. gate width: 6000 mm
clear passage width: approx. 4100 mm
max. height: 2125 mm
color finish: Anthracite RAL 7016 (matt)
Customizable flexibility without extra charges
The gate frame can be easily adjusted in width and height directly on site by shortening the profiles, which significantly reduces the costs of individual production and at the same time allows for the installation of infill according to your own requirements.
Maintenance-free solution for years
The combination of aluminum construction and stainless steel fasteners ensures high corrosion resistance. The frame retains its appearance and functionality long-term without the need for painting and further surface maintenance.
Complete solution in one set
Supplied including cantilever C-profile, upper guide profile for the system's guide wheel and tensioner.
Universal use
The cantilever sliding gate frame is suitable for family homes, company buildings, industrial areas, and commercial premises. Thanks to the possibility of installing your own infill, it provides maximum flexibility in creating the entrance according to individual requirements and the architectural solution of the object.
Advantages
• complete PRO set - cantilever C-profile, upper guide profile for the guide wheel and tensioner
• possibility of installing your own infill according to individual requirements
• high corrosion resistance
• color stability without the need for additional painting
• easy assembly without welding
• possibility of custom adjustment
• minimal maintenance - just regular cleaning
• high stability and long service life of the structure
• modular system - possibility of expansion with compatible fence panels
Parameters
Parts of set
Narrow cover strip for post profiles and for U-adapter of fence system, 20 x 08 – 6.0 m – Anthracite RAL 7016 FG/PC20x8-6000-R7016
Aluminum cover for sliding gate guide profiles 105x50 R7016 FG/CA105x50-R7016
Hexagon socket head cap screw, AISI304, M10x60 A-DIN 912-A2 M10x60
Sheet metal screw with countersunk head-TORX, stainless steel A-DIN 7982C-TX-A2 4,2x22
Nylon wheel with bearing, Zn, anthracite H/53-R7016
Lightweight tooth rack,max 300kg PVC,light,16x20 H/01PVC-AL
Assembly set for nylon combs H/01PVC-AL H/01PVC-FS-AL
Cross recessed countersunk head chipboard screw, stainless steel, AISI304, 5x35 A-DIN 7505A 5x35
Sliding gate set -ECO, for profile AL 90x99mm SV-90x99-AL-ECO
Guiding bottom profile AL, 90x99mm, L6m, RAL7016 H/02-90x99-AL-6000-R7016
Hexagon socket head cap screw, AISI304, M10x45 A-DIN 912-A2 M10x45
Hexagon nut, stainless steel A-DIN 934 M10
Upper slope, Zn, profile 60mm, anthracite H/37-60P-R7016
Holder universal, Zn, anthracite H/16-46x130-R7016
Plain washer, stainless steel, M10 A-DIN 125-A2 M10
Hexagon socket button head screw, AISI304, M10x20 A-DIN 7380-A2 M10x20
Aluminium profile/post cap 50x60, Anthracite R7016 FG/CP50x60-R7016
Tensioner for a self-supporting gate for a 40x40 profile H8/65-40x40-2700
Set of Aluminum Post 50x60 and Cover Strip - 1850 mm Anthracite R7016 FG/P50x60-1850-R7016
Narrow distance cover strip for post profiles and U-adapter of the fencing system, 20 x 08–20 mm – Anthracite RAL 7016 FG/PC20x8-20-R7016
Hexagon socket head cap screw, AISI304, M8x45 A-DIN 912-A2 M8x45
Plain washer, stainless steel, M8 A-DIN 125-A2 M8
Domed cup nut, stainless steel, M8 A-DIN 1587-A2 M8
Narrow cover strip for post profiles and the U-adapter of the fencing system, 20 × 08 – 1.85 m – Anthracite RAL 7016 FG/PC20x8-1850-R7016
Set of aluminum post 50x60 and cover strip-6.0 m, Anthracite RAL 7016 FG/P50x60-6000-R7016
