Aluminum fence panel 20 x 120 x 1.2 – 1.0 m – Anthracite RAL 7016
Description
Aluminum fence infill 20 x 120 x 1.2 – 1.0 m – Anthracite RAL 7016
Product code: FG/S20x120x1.2-1000-R7016.
Material
• Extruded aluminum EN AW-6060-T6.
• High resistance to corrosion, moisture and weather conditions.
Surface treatment
• Powder coating with fine texture, shade Anthracite RAL 7016.
• Modern matte appearance, long-term color fastness and UV stability.
Dimensions

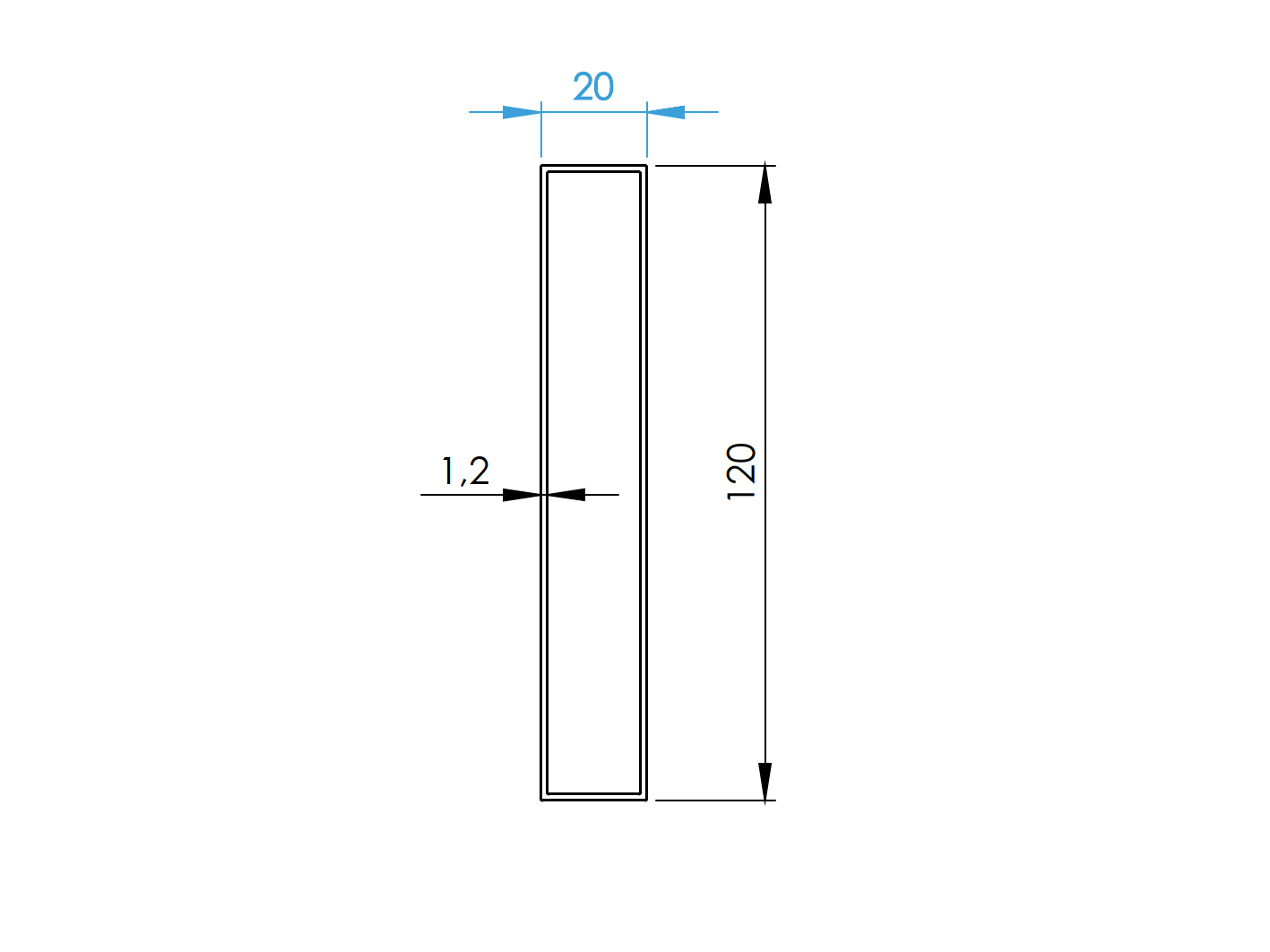

• Slat cross-section: 20 x 120.
• Profile length: 1000 mm (1.0 m).
• Possibility of shortening as needed or delivery in other length variants.
Assembly and compatibility
• Fast installation without welding, recommended screwing.
• Easy disassembly and replacement of individual parts in case of modifications or damage.
• Use as filling for PROFILES 50x60 (product code FG/P50x60...), PRO70x70 (product code FG/PRO70x70...) and 80x80 (product code FG/P80x80...).
• Use as filling for ADAPTERS Model 20... (product code FG/A20...), (product code FG/A20x14...), (product code FG/A20x26...), (product code
FG/AT16...), (product code FG/A20G...) as well as (product code FG/AL20U...) and MODEL 40 when anchoring the filling vertically alternately next to each other (product code FG/A40...).
• Compatible with Umakov profiles and accessories (cover strips, end profiles).
• Accessories: stainless steel fasteners A2.
Advantages
• Easy replacement or disassembly of individual parts during maintenance or
when parts are damaged.
• No need for additional surface treatment - durable powder coating.
• Fast assembly with a bolted system - saving time and costs.
• Minimal maintenance - regular cleaning is sufficient.
