FG/AS20-2000-R7016

Aluminum Fence Adapter 40×34 - 2.0 m, for 20 mm infills, Anthracite RAL 7016

Material: Aluminium, Surface finish: Textured powder coating, Effect: Antracit RAL7016

€0,00
without VAT
€0,00
with VAT


Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Description

Aluminum Fence Adapter 40×34 - 2.0 m, for 20 mm infills, Anthracite RAL 7016

Product Code FG/AS20-2000-R7016

Material
Extruded aluminum EN AW-60-63-T6
High resistance to corrosion, moisture, and weather conditions

Surface Finish
Powder coating with fine texture, shade Anthracite RAL 7016
Modern matte appearance, long-term color stability and UV resistance

Dimensions

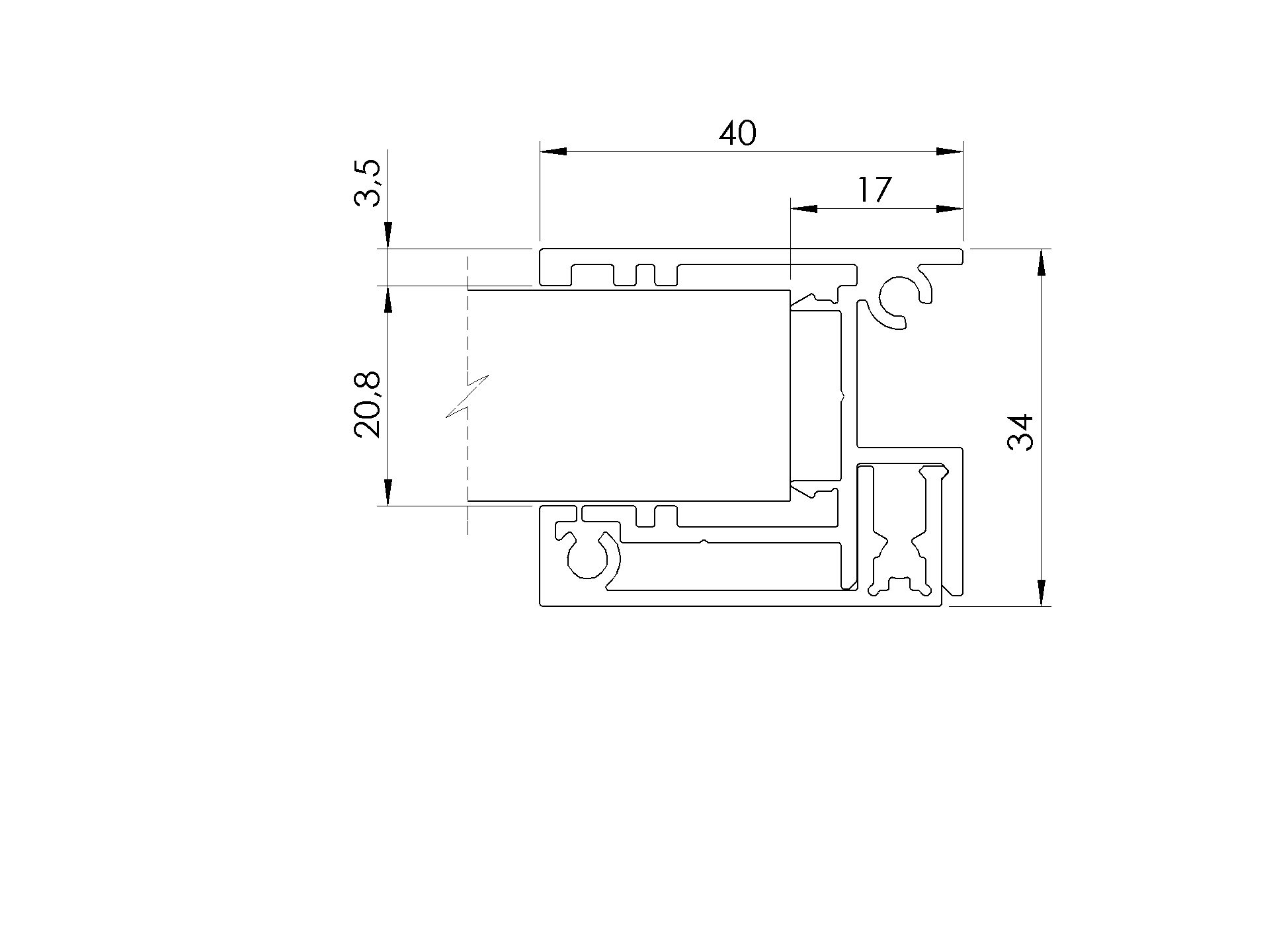

Cross-section 40 × 34 mm
Length 2000 mm (2.0 m)
Can be shortened needed or supplied in other length variants.

Installation and Compatibility
Quick installation without welding, screwing recommended
Easy disassembly or replacement of individual parts during modifications or damage
Essential for installation: adapter cap (product code FG/A2F20x14...)
Designed for vertical anchoring of 20 mm wide slats MODEL 20S (product code FG/S20x...) and other 20 mm infills
Also suitable for MODEL 20L slats (product code FG/L1S20x...), (product code FG/L2S20x...), (product code FG/L1R20x...), (product code FG/O20x...)
When using a narrow cover strip (product code FG/PC20x16...) and seal (product code A19/PC20x16...), also suitable for anchoring panel infills 1-8 mm thick
With the use of narrow spacer cover strips (product code FG/PC20x8-20-R7016), (product code FG/PC20x8-30-R7016), (product code FG/PC20x8-50-R7016), it allows anchoring of MODEL 20S slats (product code FG/20x...) with gaps of 20 mm, 30 mm, and 50 mm
Similarly, with the use of click lock spacer cover strips (product code FG/FC20-100-R7016), (product code FG/FC20-50-R7016), (product code FG/FC20-20-R7016), it allows anchoring of MODEL 20S slats (product code FG/S20x...) with gaps of 20 mm, 30 mm, 50 mm, and 100 mm
With the use of angle-cut cover strips (product code FG/PC20x16...), (product code FC/20x8...), it allows angled anchoring of MODEL 20L slats (product code FG/L1S20x...), (product code FG/L2S20x...), (product code FG/L1R20x...), (product code FG/O20x...)
Compatible with cover strips (product code FG/PC20x16...), (product code FC/20x8...) and click lock cover strips (product code FG/FC20...)
Compatible with cap (product code FG/CA40x34-R7016...), anchored with two screws (product code A-DIN 7982C-TX-A2 4.2x22...)
Compatible with diffuser (product code FG/PC20x8-2000)
Recommended accessories - stainless steel fasteners A2

Advantages
Easy replacement or disassembly of individual parts during maintenance or for damaged parts
No need for further surface treatment - durable powder coating
Quick installation with screw system - saves time and costs
Minimal maintenance - regular cleaning is sufficient.

Parameters

Material
Defines the material from which the product is made.
Aluminium
Surface finish
Surface finish of product
Textured powder coating
Effect
Vyberte si farebný odtieň.
Antracit RAL7016
