Aluminium fence adapter for 40 mm infills and for façade system, 45 x 20 – 6.0 m – Black RAL 9005

Aluminium Fence Adapter for 40 mm Infill Panels and for Facade System, 45 × 20 – 6.0 m – Black RAL 9005

Product Code: FG/AL40U-6000-R9005

Aluminium fence adapter designed for mounting 40 mm infill panels, for facade systems, and for angled anchoring of rhomboid and oval fence louvers. Thanks to high-quality extruded aluminum and durable powder coating, it is suitable for long-term outdoor and indoor use.

Material
• Extruded aluminum EN AW-6063-T6.
• High resistance to corrosion, moisture, and weather conditions.

Surface Finish
• Powder coating with a fine texture.
• Shade Black RAL 9005.
• Modern matte appearance, long-term color stability, and UV resistance.

Dimensions

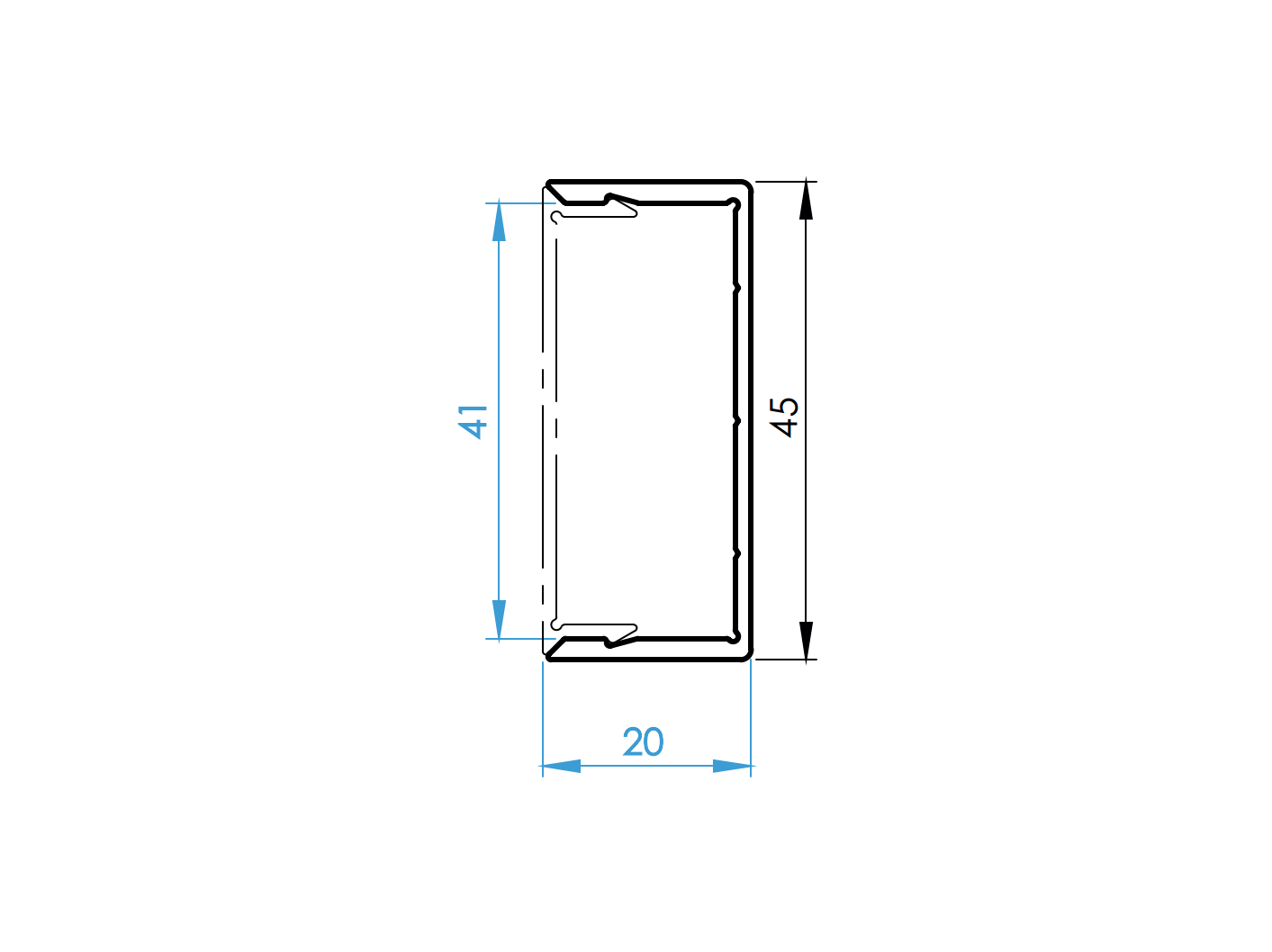

• Adapter cross-section: 45 × 20 mm.
• Profile length: 6000 mm (6.0 m).
• Can be shortened needed or supplied in other length variants.

Mounting and Compatibility
• Screwed fence and facade mounting system – quick installation without welding.
• Easy disassembly and replacement of individual parts during modifications or damage.
• Use a supporting profile for vertical anchoring of fence lamellas and for strengthening horizontally anchored lamellas of longer fence sections.
• Allows easy anchoring of lamellas or other 40 mm infill panels and angled anchoring of MODEL40 lamellas.
• Option for angled anchoring of aluminum rhomboid louvers (product code FG/L1S20x105...) and oval fence louvers (product code FG/O20x100...), using a 32° cut click-lock cover strip (product code FG/AF41x9...); visible anchoring screws or rivets.
• Option for angled anchoring of aluminum rhomboid louvers (product code FG/L1S20x105...) with 5 mm gaps using a click-lock spacer cover strip set (product code FG/AF41x9-NOL-05-SET) or without gaps with a 5 mm overlap using a click-lock spacer cover strip set (product code FG/AF41x9-OL-05-SET); visible anchoring screws or rivets.
• Interior facade system: use a supporting facade profile, or vertical facade profile, via a click-lock connector (product code A19/45x25-R9005).
• Possibility of combination with vertical facade profiles (product code FG/AL20U... or FG/AL25x6...), via a click-lock connector (product code A19/25x25-R9005).
• Compatible with Umakov profiles and accessories (posts, cover strips, end profiles).
• Accessories: caps, stainless steel fasteners A2.

Advantages
• Easy replacement or disassembly of individual parts during maintenance or damage.
• No further surface treatment required – durable powder coating.
• Quick assembly with a screwed system – saving time and costs.
• Minimal maintenance – regular cleaning is sufficient.
