FG/AL40U-6000-R7016

Aluminium fence adapter for 40 mm infills and for facade system, 45 x 20 – 6.0 m – Anthracite RAL 7016

Material: Aluminium, Surface finish: Textured powder coating, Effect: Antracit RAL7016, L: 6000

€79,28
without VAT
€95,14
with VAT
PCS
Stock availability
SK Krompachy > 25
SK Banská Bystrica 2
SK Bratislava R1 0
SK Senec 8

Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Description

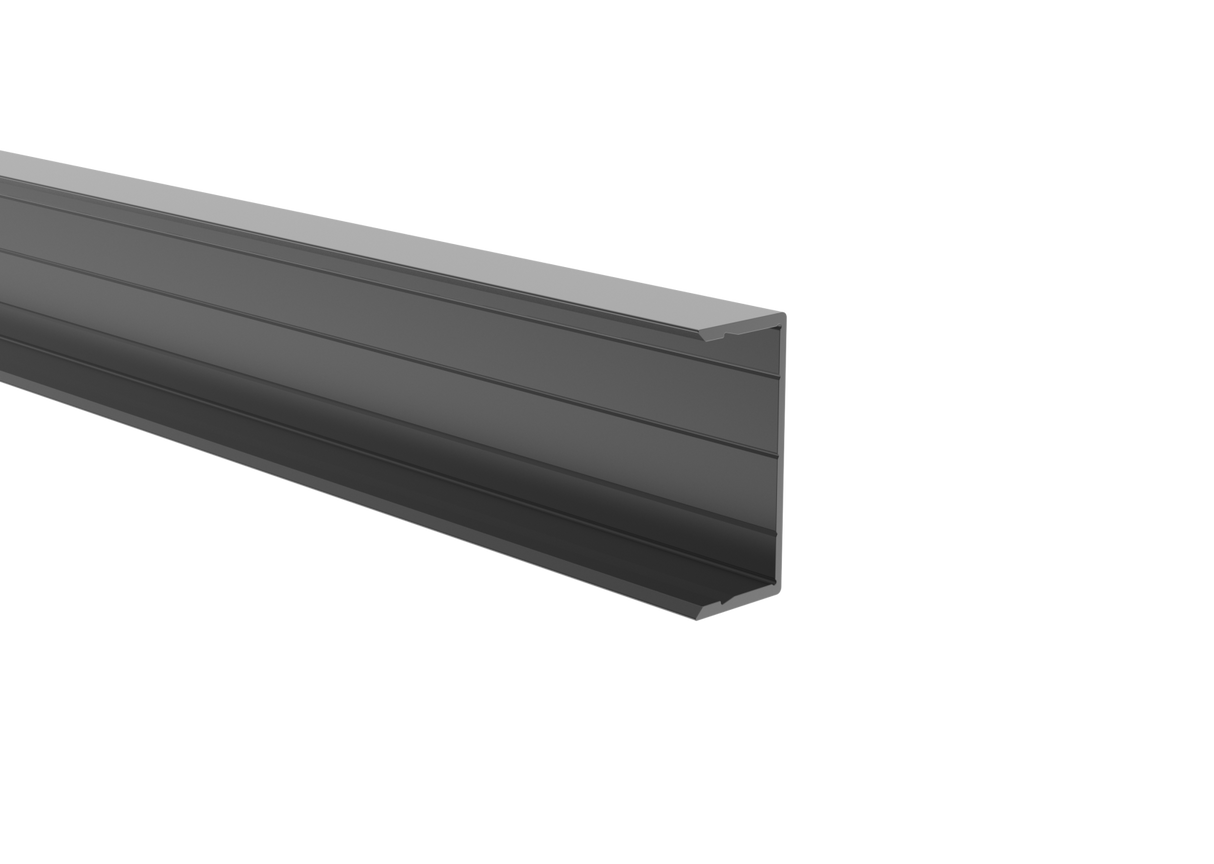

Aluminium fence adapter for 40 mm infills and for facade system, 45 × 20 – 6.0 m – Anthracite RAL 7016
Product code: FG/AL40U-6000-R7016

Aluminium fence adapter designed for mounting 40 mm infills, for facade systems and for angled anchoring of rhomboid and oval fence louvers. Thanks to high-quality extruded aluminium and durable powder coating, it is suitable for long-term outdoor and indoor use.

Material
Extruded aluminium EN AW-6063-T6.
High resistance to corrosion, moisture, and weather conditions.

Surface finish
Powder coating with a fine texture.
Shade Anthracite RAL 7016.
Modern matte appearance, long-term color stability, and UV resistance.

Dimensions
Adapter cross-section: 45 × 20 mm.
Profile length: 6000 mm (6.0 m).
Can be shortened needed or supplied in other length variants.

Assembly and compatibility
Screwed fence and facade mounting system – quick installation without welding.
Easy disassembly and replacement of individual parts during modifications or damage.

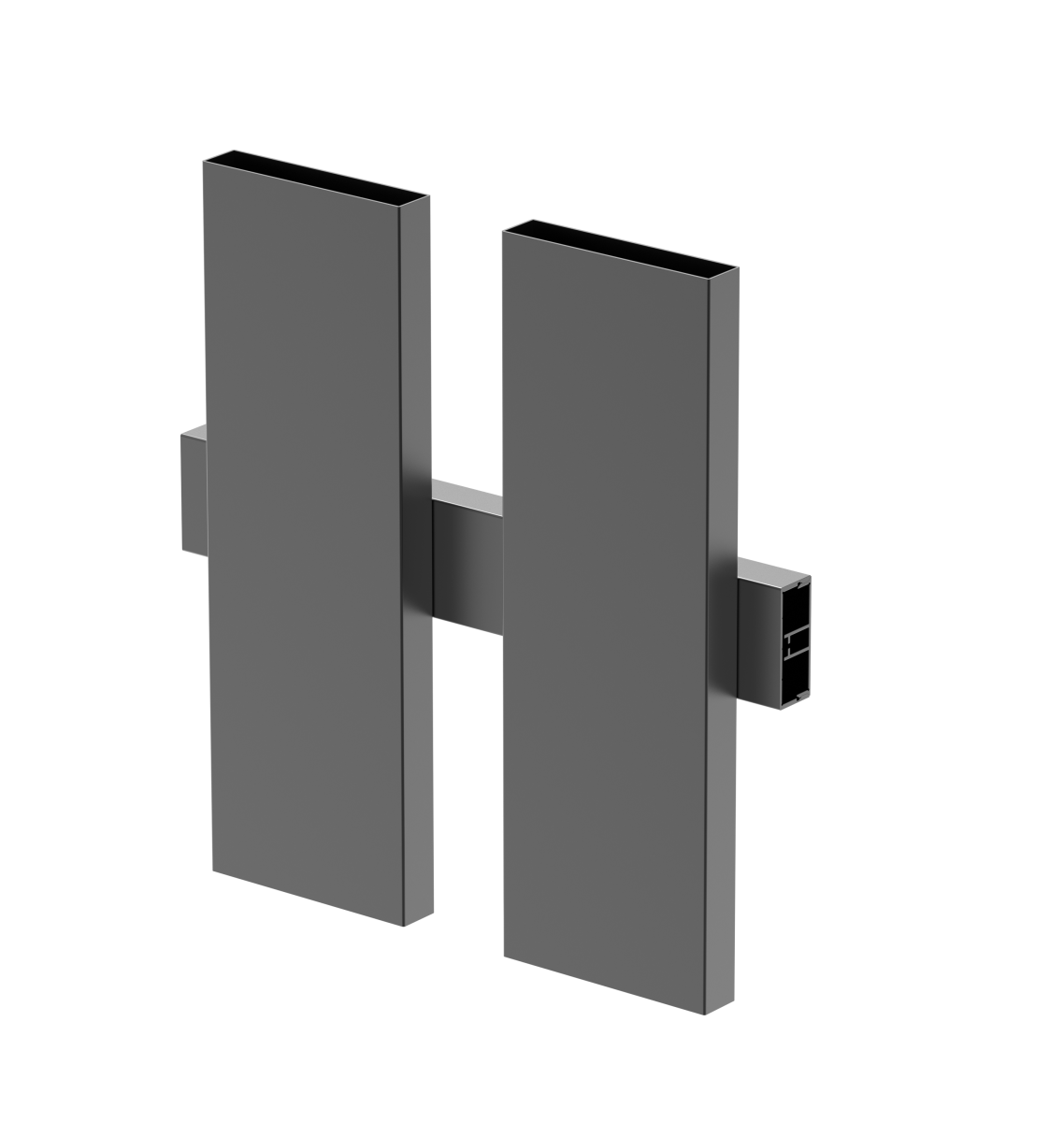

Use a supporting profile for vertical anchoring of fence lamellas and for strengthening horizontally anchored lamellas of longer fence sections.

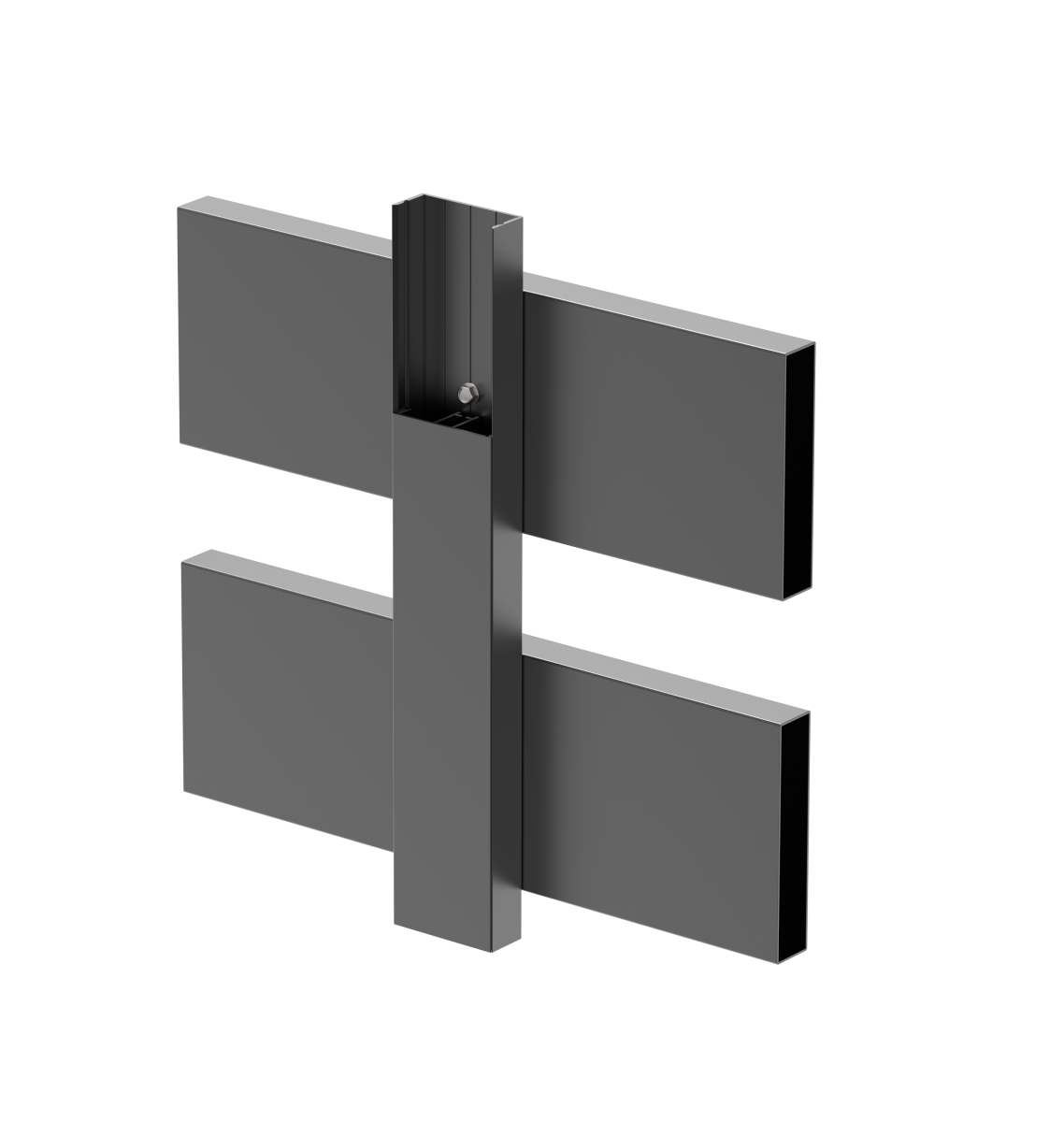

Allows easy anchoring of lamellas or other 40 mm infills and angled anchoring of MODEL40 lamellas.
Possibility of angled anchoring of aluminium rhomboid louvers (product code FG/L1S20x105...) and oval fence louvers (product code FG/O20x100...), using a 32° cut click-lock cover strip (product code FG/AF41x9...); visible anchoring screws or rivets.
Possibility of angled anchoring of aluminium rhomboid louvers (product code FG/L1S20x105...) with 5 mm gaps using a click-lock spacer cover strip set (product code FG/AF41x9-NOL-05-SET) or without gaps with a 5 mm overlap using a click-lock spacer cover strip set (product code FG/AF41x9-OL-05-SET); visible anchoring screws or rivets.

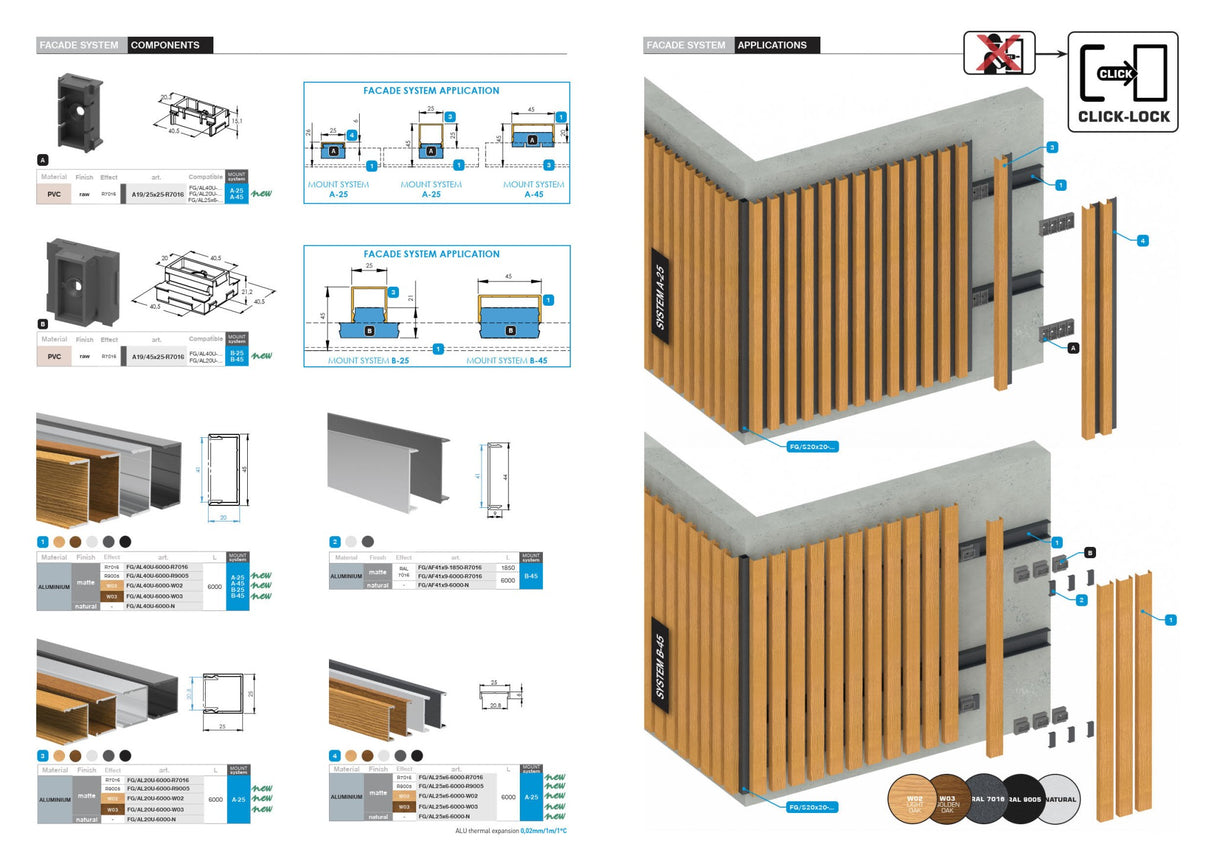

Interior facade system: use a load-bearing facade profile, or vertical facade profile, via a click-lock connector (product code A19/45x25-R7016).
Possibility of combination with vertical facade profiles (product code FG/AL20U... or FG/AL25x6...), via a click-lock connector (product code A19/25x25-R7016).
Compatible with Umakov profiles and accessories (posts, cover strips, end profiles).
Accessories: caps, stainless steel fasteners A2.

Advantages
Easy replacement or disassembly of individual parts during maintenance or damage.
No need for further surface treatment – durable powder coating.
Quick assembly with a screwed system – saving time and costs.
Minimal maintenance – regular cleaning is sufficient.

Parameters

Hliníkový plotový adaptér pre výplne 40 mm a pre fasádny systém, 45 x 20 – 6,0 m – Antracit RAL 701
Material
Defines the material from which the product is made.
Aluminium
Surface finish
Surface finish of product
Textured powder coating
Effect
Vyberte si farebný odtieň.
Antracit RAL7016
L
Length parameter of the product
6000

Download

PDF
Parametric drawing
STEP
STEP file
STL
3D model
