Description

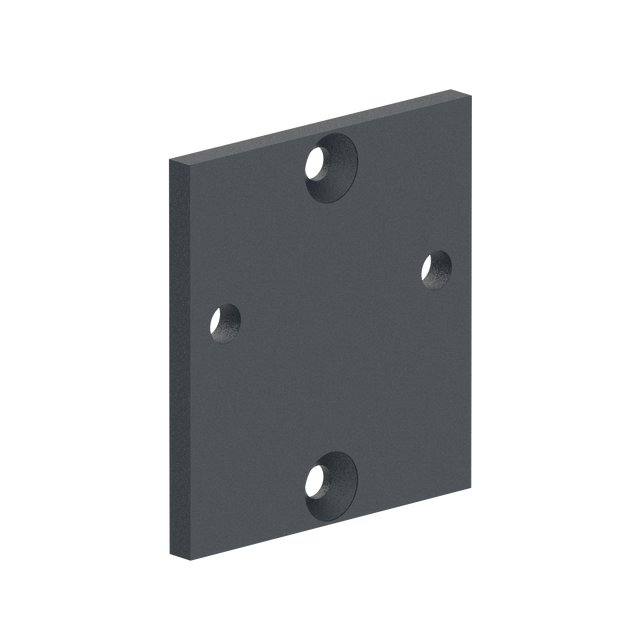

Aluminium Anchor Plate for Profile/Post 56×60 mm, Side Mounting - Anthracite RAL 7016
Product Code: FG/BKP120x130x10-R7016
Material
High-quality aluminium EN AW-6063 T6.
High resistance to corrosion and weather conditions.
Surface Finish
Powder coating in Anthracite RAL 7016 shade.
Modern matte appearance, long-term color stability and UV resistance.
Dimensions
Plate: 120×130×10 mm.
Designed for side mounting of 56x60 profile/post
Installation and Compatibility
Easy and secure installation on concrete substrate or foundation footing.
Designed for secure side mounting of 56x60 aluminium profiles (product code FG/FP56x60...).
Attached to the post via a rectangular spacer insert (product code FG/S20x120...) using 2 screws (product code A-DIN 7991-A2 M10x35).
Anchored to the concrete substrate using two threaded rods (product code A-DIN 975 M10-200), two washers (product code A-DIN 125-A2 M10), two cap nuts (product code A-DIN 1587-A2 M10) and chemical anchor.
Compatibility with aluminium profiles and accessories (cover strips, end profiles).
Accessories: stainless steel screws and A2 stainless steel fasteners.
Advantages
High stability and strength of post anchoring.
Long lifespan and resistance to weather conditions.
Maintenance-free solution – regular cleaning is sufficient.
Aesthetic appearance – aluminium plate with anthracite surface finish.
Quick and easy installation, saving time and costs.
